30 January, 2013

Friends in low places

My sister and mum went over to check that the shedhouse was still standing.

And it is!  Ironcially enough - the ground is hardly even wet.  I guess it came down too fast to soak in.

She also took a video of what is left of the bridge.

Oh dear.



The fences are gone too - so that will be our weekend.

Flood fencing.

29 January, 2013

"If you want to hear God laugh, tell him your plan."

Not sure if you all know this but it has been a bit wet up where we have been working.

As in, 552mm of rain in 72 hours wet.

That is 22 and a bit inches on the old scale.

So you know the beautiful bridge the the FB has been slaving over for the past 3 months?

Well, lets just say it ain't lookin so pretty now.

We haven't been to see it ourselves, it was too too wet/river too high to get to.  But our next door neighbour has been there.

The FB is understandably upset, and I am too.  It is so hard when you see all your hard work just washed away.

Erk.

On the upside, at least our new tanks and pump weren't delivered yet, so didn't get washed away.

Here are some pictures of the front bridge, during the flood and after the flood.

I will post an update after the weekend.

(with thanks to Bernie West)

During the flood.  It is usually about 2 metres from the bridge to the water.


Louise and Pauls Bridge
All that water.  All that time.



Louise and Pauls Bridge
Lucky there is anything left at all.


21 January, 2013

High Water mark

Now we can get to our shedouse, we get to go to the next stage.

Water and plumbing.

The shed should be able to catch ample water for our needs - but we do need to keep the water somewhere.

The water set up will be a 22,500lt tank with a 1200 lt high tank - so we don't need to use the water pump all the time.

As we won't be on the electricty grid, solar/wind/water electricity is all we will have, and gas for heating.

So that means - doing everything the old fashioned way, including the water.

It won't be enough pressure to have a shower, but we will be able to fill the kettle, and the toilet  and to run the tap to wash your hands.    To create enough 'head', the small tank needs to be up high.

Luckily for me the FB is an accomplished welder.  He does, however, not like it and also hates it.  So I am very thankful that he has put his fab skills to good use and has created a high tank stand.

We were also lucky enough to have the material on site, so it could all happen fairly smoothly.


We have a welder that was gifted to us by the FB's father, which is in pretty good nick, and the lengths had to be cut with an angle grinder, not a drop saw, so the job was not without its challenges.

It was also completed on the HOTTEST day of the year/summer at 36c.

Which the FB does not like and also he hates as well.

Have a look at the work in progress:

Tank Stand (1)
Cross Bracing

Tank Stand (3)
The top section where the tank will sit
Tank Stand (2)
He might hate it, but he is SO good at it!



Tank Stand (5)
Not the only sparks that flew.

20 January, 2013

Its all in the approach


Because the bridge is linking a stocked paddock with a roadway, we need to put in a grid.

This of course requires more earthworks.  And a grid.

Luckily the one that was there previously is still in pretty good condition, so that can be used.  You also need abutments, and then a section of fencing from the bbridge to the grid.

The location of our bridge is a bit precarious - there are natural springs and bog holes that just kind of pop up in the wetter weather in this area.

So the FB has decided to use the grid as a type of bridge over one of these areas, in conjunction with a copule of hollow logs in the subsequent wettter areas on the road.

It makes more sense when you see it:

Grid and Fresh (4)


Grid and Fresh (3)

The grid needs a fairly big hole dug, and two more logs to sit on (these are the abutments).  In the link above, they are concrete, but you can cut a section like that out of a log, and sit the grid on.

Grid and Fresh (2)

You will have to imagine it without the water in it, this was after inches and inches of rain


Grid and Fresh (10)


Grid and Fresh (6)

This is the bridge from the side down in the creek and nothing at all to do with grids.

  Then it is fenced up:




And Bob's your boss!

The last thing to do is to get Jimmy Lamb to bring the backhoe and gravel and we are finished!

19 January, 2013

And all who drive on her.....

The maiden voyage!


Bridge voyage (37)
The "White Dog" Landcruiser prepares for the maiden voyage





Bridge voyage (38)
Just stop there and smile!




And the return trip!


Bridge voyage (39)
And stop there too - so I can capture the way back.



(of course, as we are using the Cruiser as a roller as well, there was about 28 voyages in this time frame)

Next step:  The approach

17 January, 2013

There's a hole in my bridge, dear FB, dear FB

And we continue with the bridge!

as the bridge 'floor' has been laid, using logs side by side, it has come to the attention of the foreperson that there are some possible design issues with the current state.


Bridge (9)
Yes that is the river you can see through the bridge


That being said, it look great and I am very excited about being able to drive on it soon!

I was concerned that the logs might 'run away', so some stays had to be put in place.

This of course, needed two more logs, so there was more Axe Men action.

Then the Iseki post hole digger expereince you may remember from much earlier posts, and then putting the posts in with back fill and crow bar.

Luckily the Brother in Law was available as Tech support for the FB.

But the course of true love, much like this bridge, never runs smooth.

The logs don't meet up.  So we need to source some rocks to fill in the gaps.

My mum and I went up to the old gravel pit to pick up rocks - and then dumped them out of the Landcruiser and onto the bridge.


Bridge voyage (11)
I am a rock fan!




Bridge voyage (16)
Rocks, logs and a pile of soil




Then the FB got on with the earth works.



Bridge voyage (12)Bridge voyage (8)


Bridge voyage (21)


Bridge voyage (25)



Bridge voyage (28)


There were a few hairy moments (for me) when he was walking the machinery almost over the bridge....


Bridge voyage (6)


Bridge voyage (34)



But it looks great.  And ready for the maiden voyage!

Bridge voyage (36)

16 January, 2013

I feel the earth move

The Bridge Saga continues.

So now we have the logs needed, they have to be put into place.

You may remember the ingredient list for the creation of the bridge, and that it doesn't include the word "Crane".

Some of you may see that as a problem, we see it as a challenge.  As in "challenge accepted!"

This is how the ballet of the bulldozer and the tractor is completed:

Act 1.


The tractor  is driven down across the creek, back up over the other side to the opposite bank.

The tractor operator then walks down and across the creek and back up the other side to the Dozer.

The Dozer pulls the logs into preparation place, in the correct order with the snig chain.

The drop to the water is about 2.3 metres.


Bridge (2)

Act 2.


The dozer using its blade, gently pushes the log across the void toward the opposite bank and waiting tractor, leaving a gap of about 1.5 metres.

The dozer operator then dismounts the dozer.

 The operator then uses spare chain to create a loop around the end of the log - with the loose end about 3 m long.

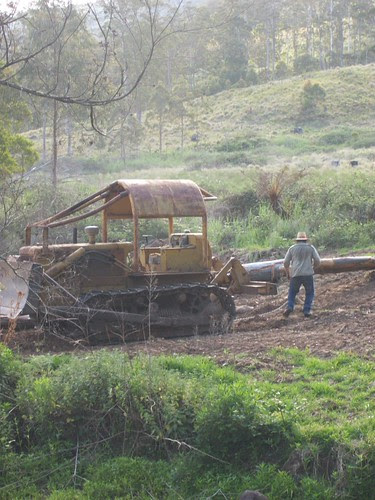

Bridge (5)

Then he walks down across the creek, back up the bank to the tractor.

When on the other side, he hooks the  snig chain up to the forks of the tractor - and throws the loose end toward the waiting log, and sometime assistant - who then links the two chains up.

Act 3.


The tractor operator lifts the forks of the dozer and reverses slowly.

The log is pulled gently and precicely into place.

A gentle applause is heard.

Bridge (13)


This ballet is performed at least 12 times.

Evidence here:
Bridge (8)
